Toyota GR Yaris with the ARMASPEED carbon fiber aerodynamic kit installed, parked in an urban setting.
Industrial Design · Product Management · 2021–2023

ARMASPEED Aero Kits 碳纖維空力套件

Carbon fiber aerodynamic kits for three cars: Toyota GR Yaris, Toyota Supra A90, and Porsche Taycan. I covered the industrial design and the development PM seats, taking each kit from vehicle scan to approved sample.

Year
2021–2023
Type
Carbon-fiber aero kits
GR Yaris · Supra · Taycan
Methods
Photogrammetry · Rhino CAD
Carbon layup · Jig QC
Project
Solo project
ID + Dev PM seat
01 · The Pipeline

Six steps, one pipeline

The pipeline runs from vehicle scan to released product. My seats covered the design and development half: scanning, CAD, first sample review, on-car fitment, and spec/jig sign-off.

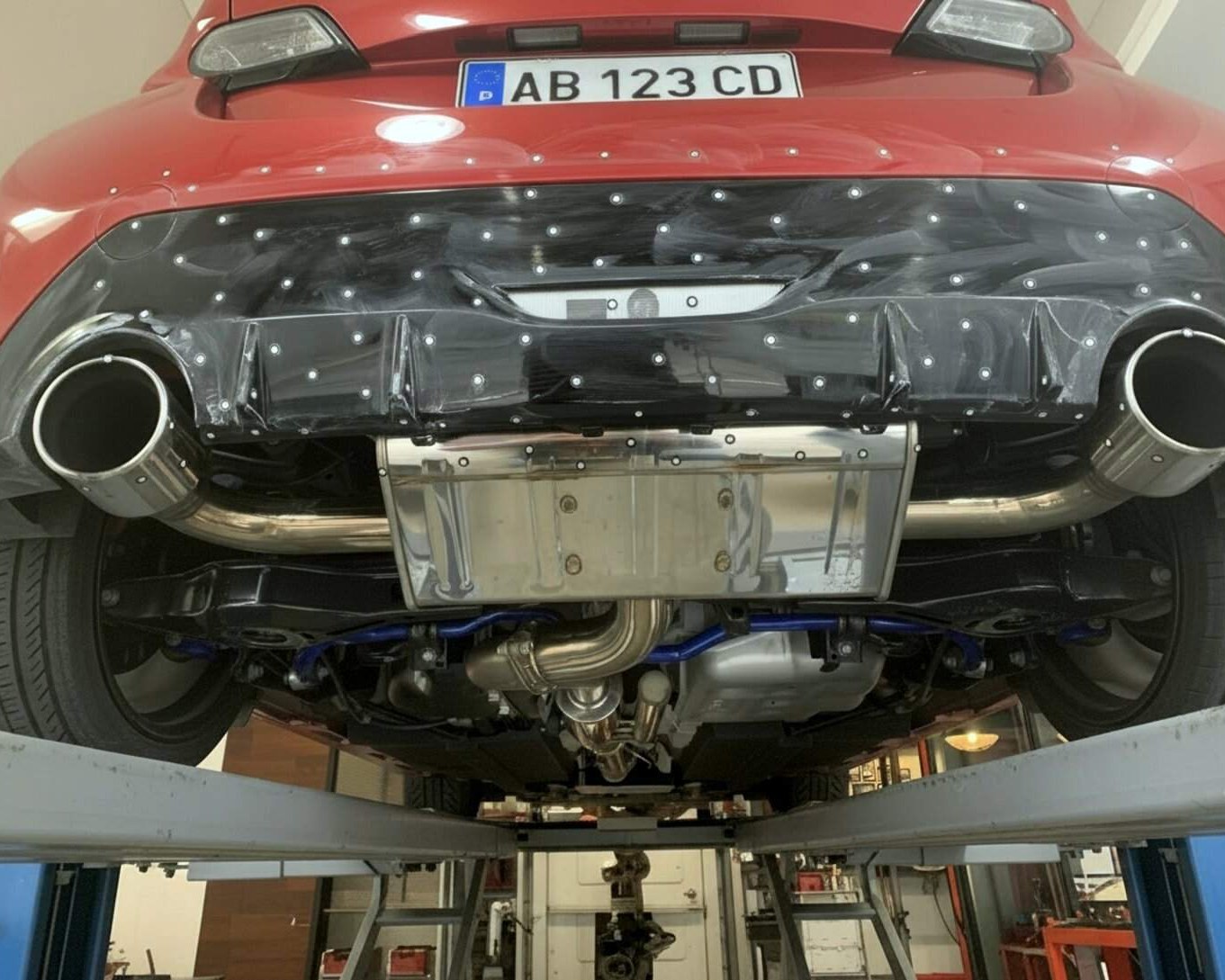

Photogrammetry tracking dots applied to the rear of a red car for 3D scanning.

01 · Vehicle Scan3D photogrammetry of the donor car body to capture every surface tolerance.

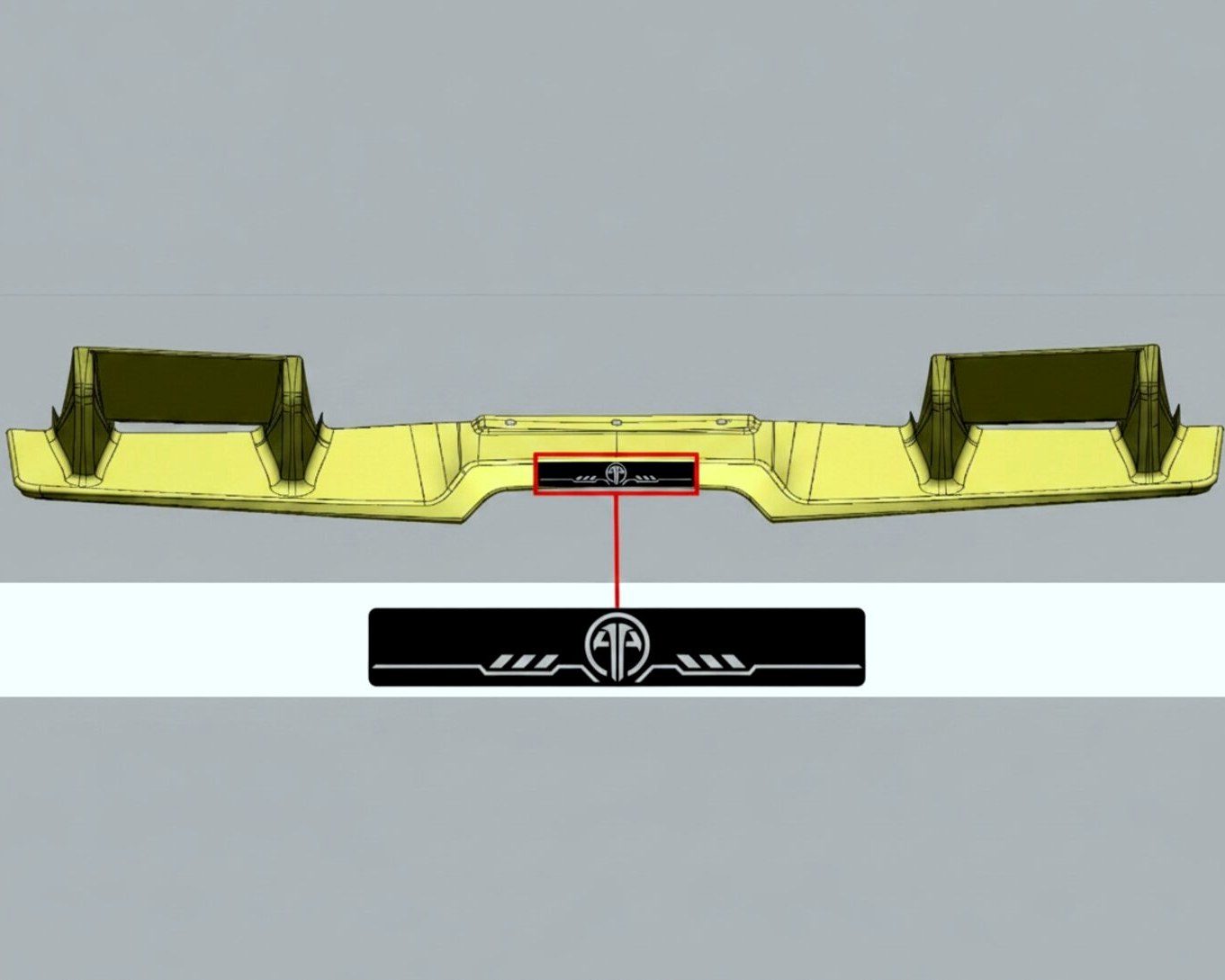

CAD model of a rear diffuser with the ARMASPEED logo plate detail highlighted.

02 · CAD ModelSurface modeling in Rhino, with logo plate and mounting points designed in.

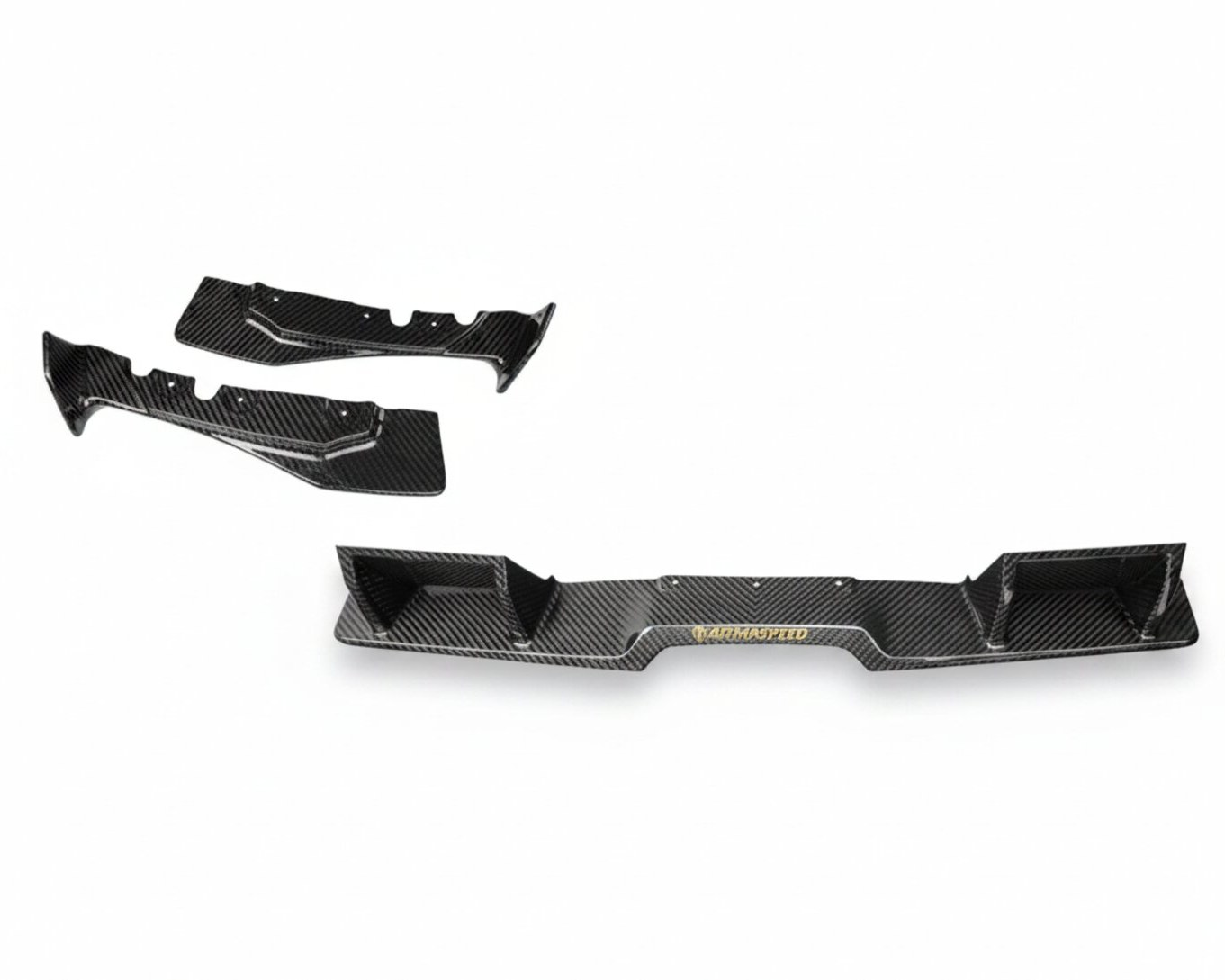

First carbon fiber samples of three rear diffuser pieces, in studio lighting.

03 · First SampleCarbon fiber layup, vacuum bagging, autoclave cure on the first physical part.

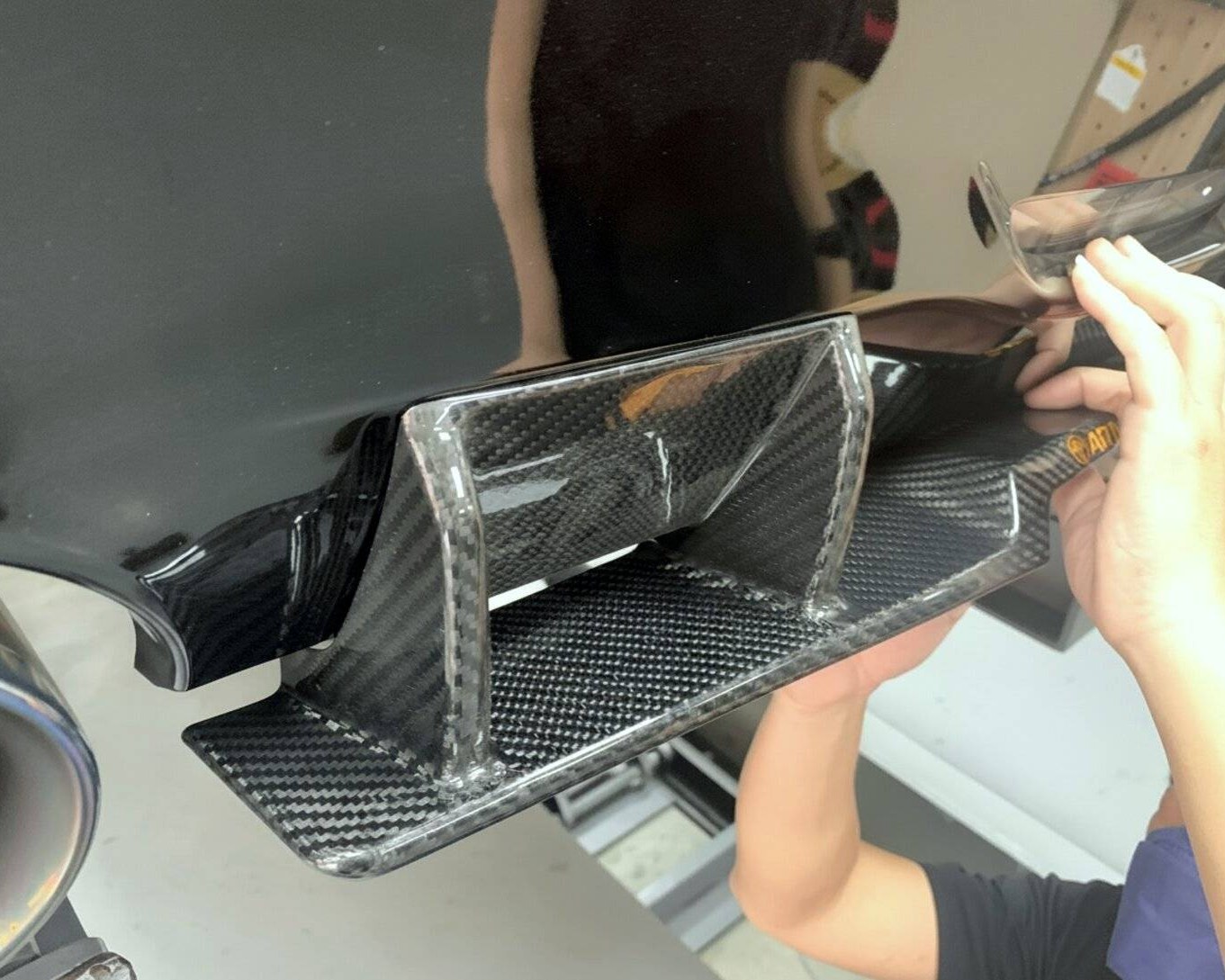

Hands fitting a carbon fiber piece against a black car body to check fit.

04 · Fit RefinementHands-on fitment on the real car. Adjustments until the gap closes.

Annotated CAD drawing of a part with the wooden inspection jig shown alongside.

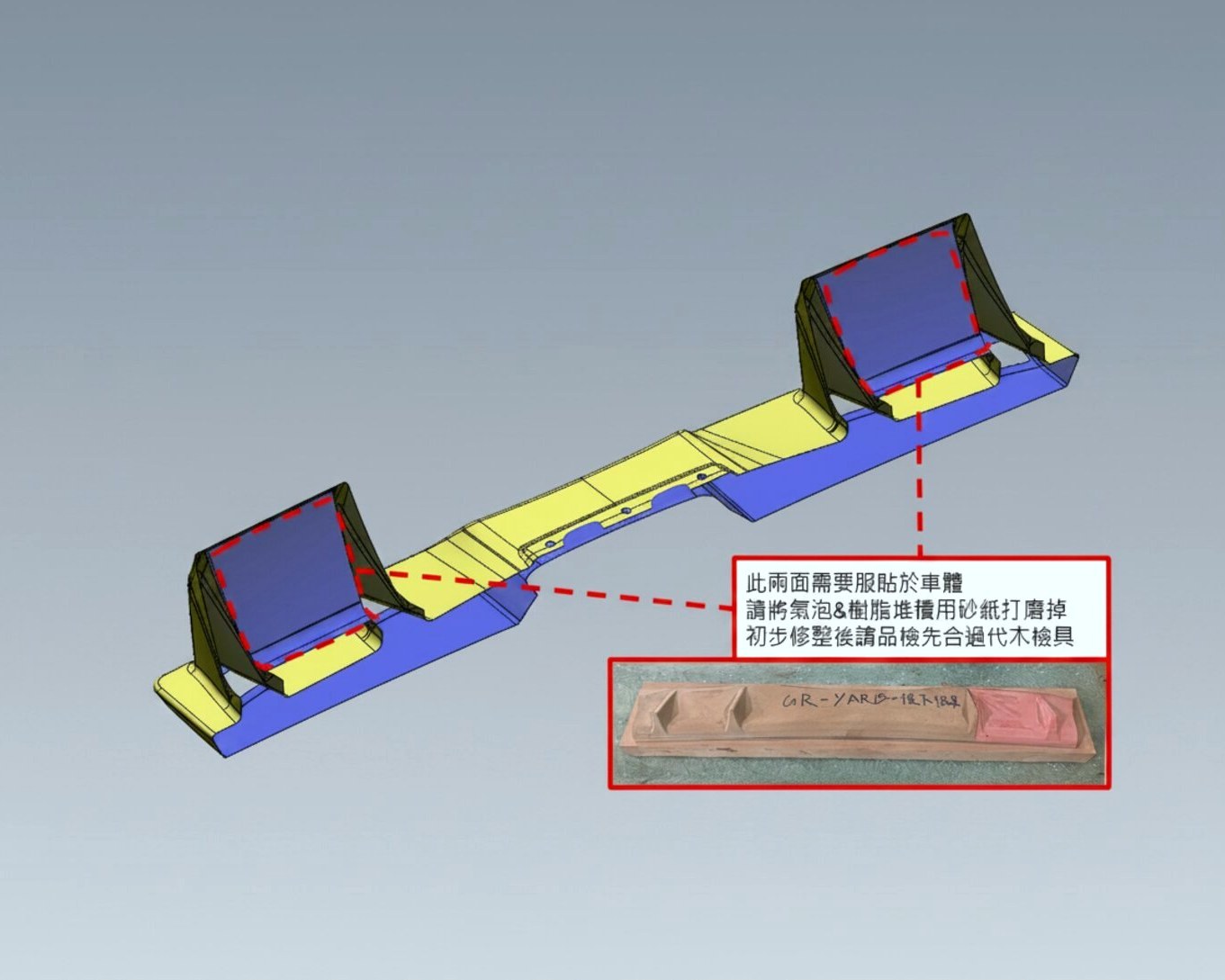

05 · Spec & JigProduction drawings and the wooden inspection jig used for QC on every unit.

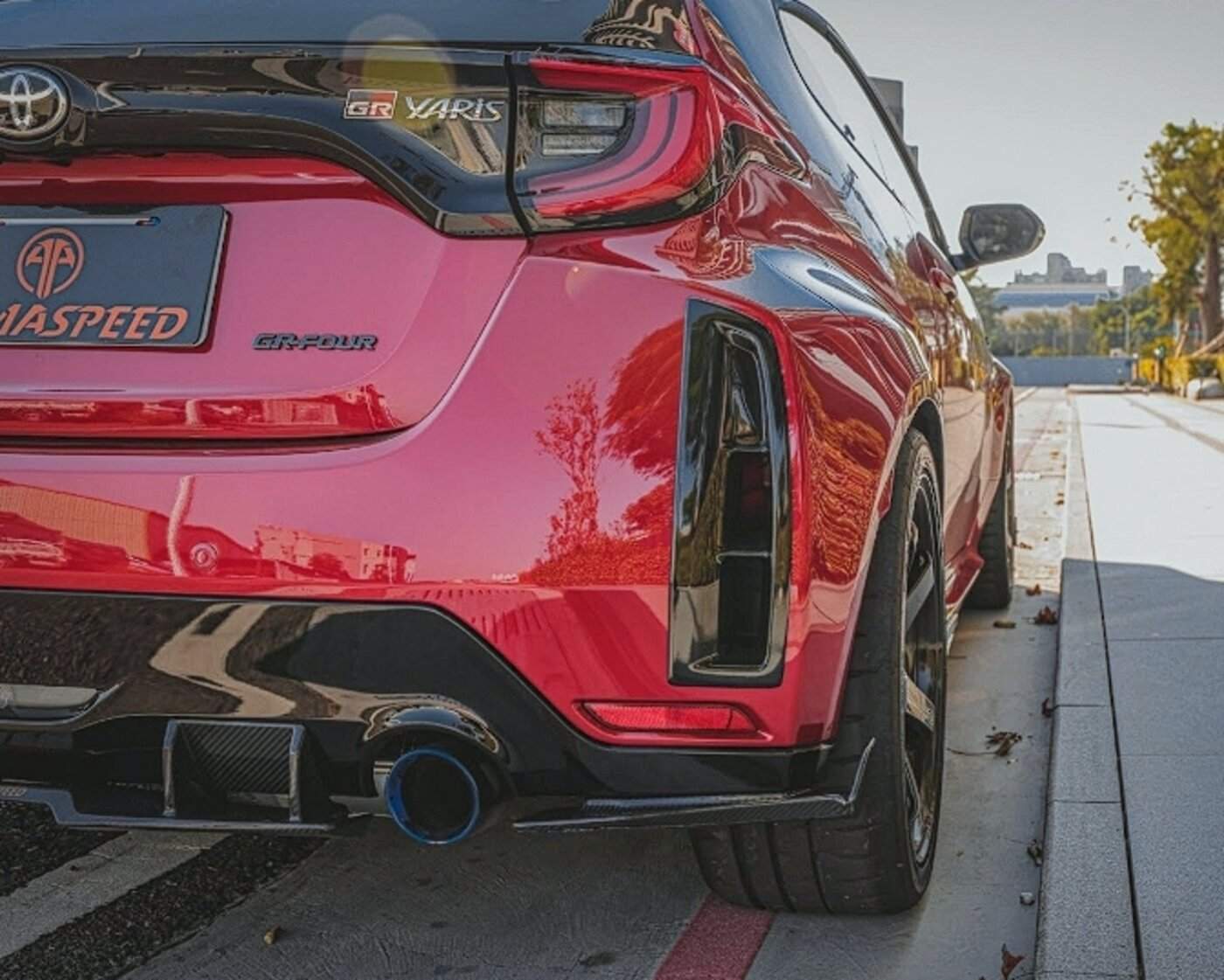

Red Toyota GR Yaris with the finished kit installed, parked at golden hour.

06 · ReleaseFinal product on a customer-spec car, ready for shipping.

02 · Material

Carbon fiber, end to end

Every part is dry-layup carbon fiber: pre-impregnated cloth, vacuum bagged, autoclave cured, then machined and clear-coated. The weave orientation on each part is a design choice, not a default.

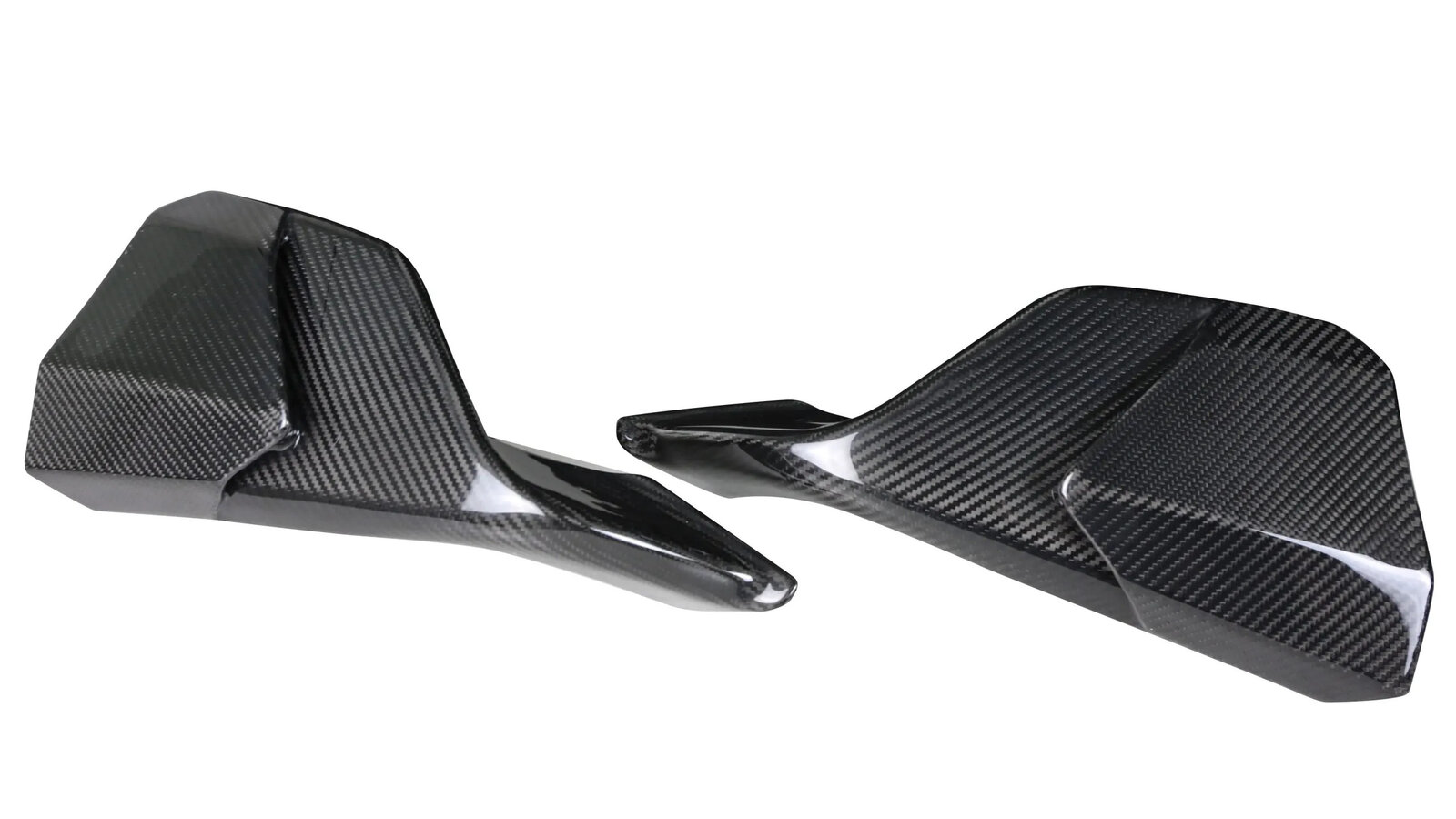

Closeup of the carbon fiber side skirt installed on a blue Supra, weave clearly visible.

Side skirt weave detail. The 0/45/90° layup orientation runs across the visible face.

03 · Selected Platforms

Three cars from the carbon line

The three kits below are from ARMASPEED’s carbon fiber line. Each one took roughly six to eight months from start to approved sample. The pipeline stayed the same. The donor-car tolerances did not.

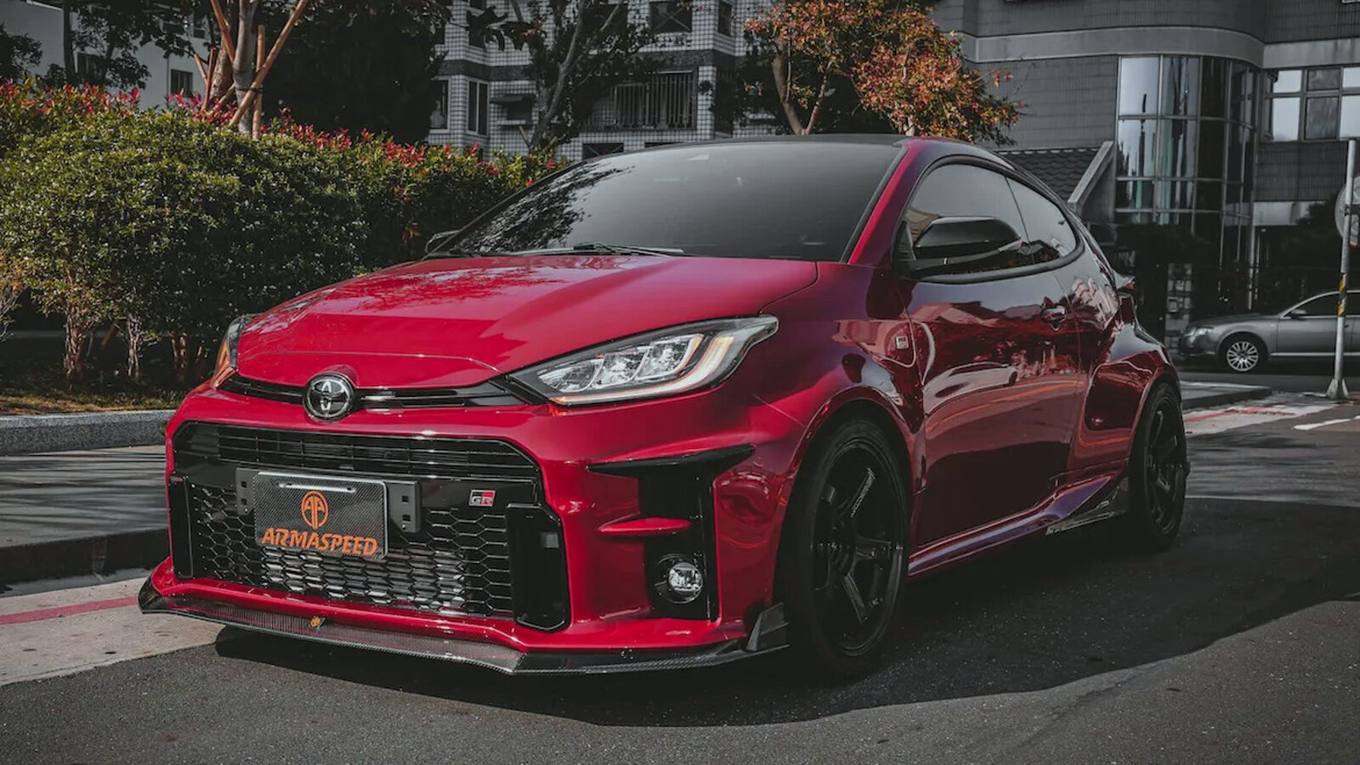

Toyota GR Yaris with the full ARMASPEED carbon kit.

Toyota GR Yaris
Front lip, side skirts, rear diffuser, spoiler.
View live product →

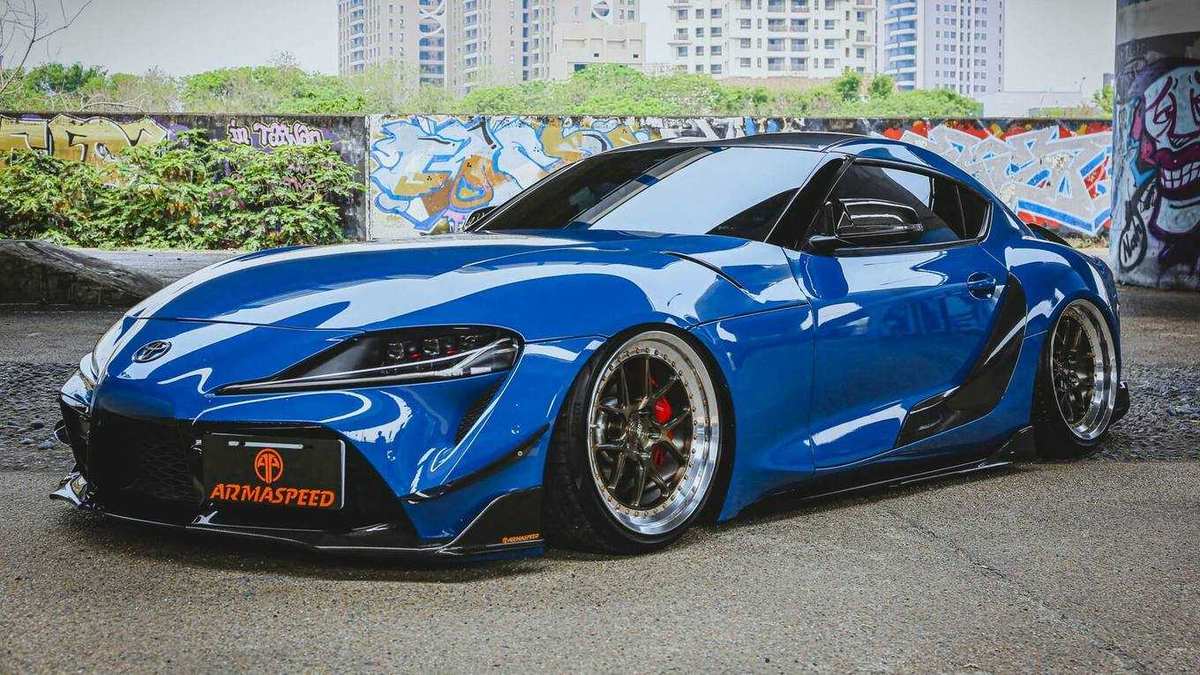

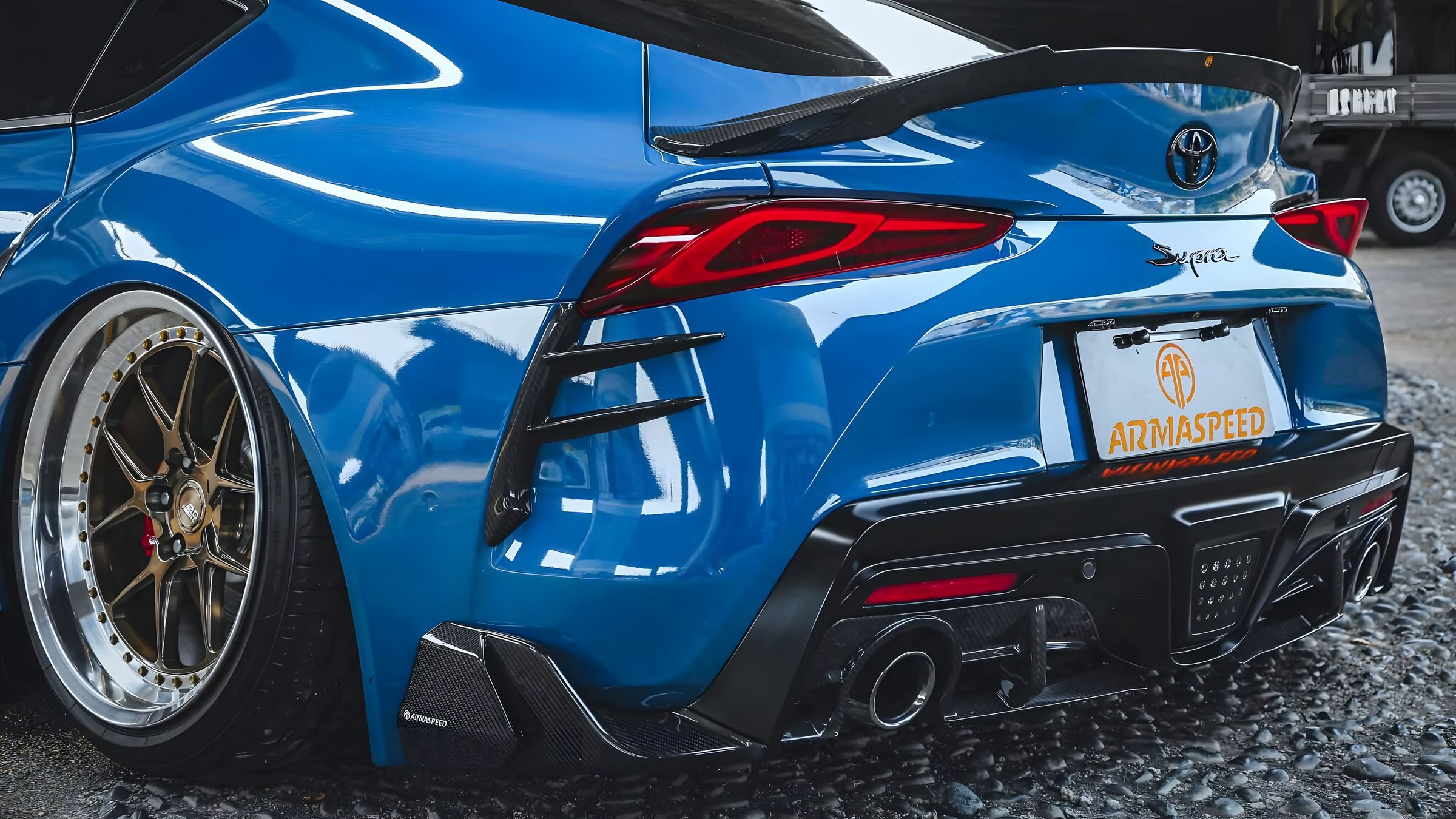

Toyota Supra A90 with the ARMASPEED carbon kit, side view.

Toyota Supra A90 MK5
Front splitter, side skirts, rear diffuser, spoiler.
View live product →

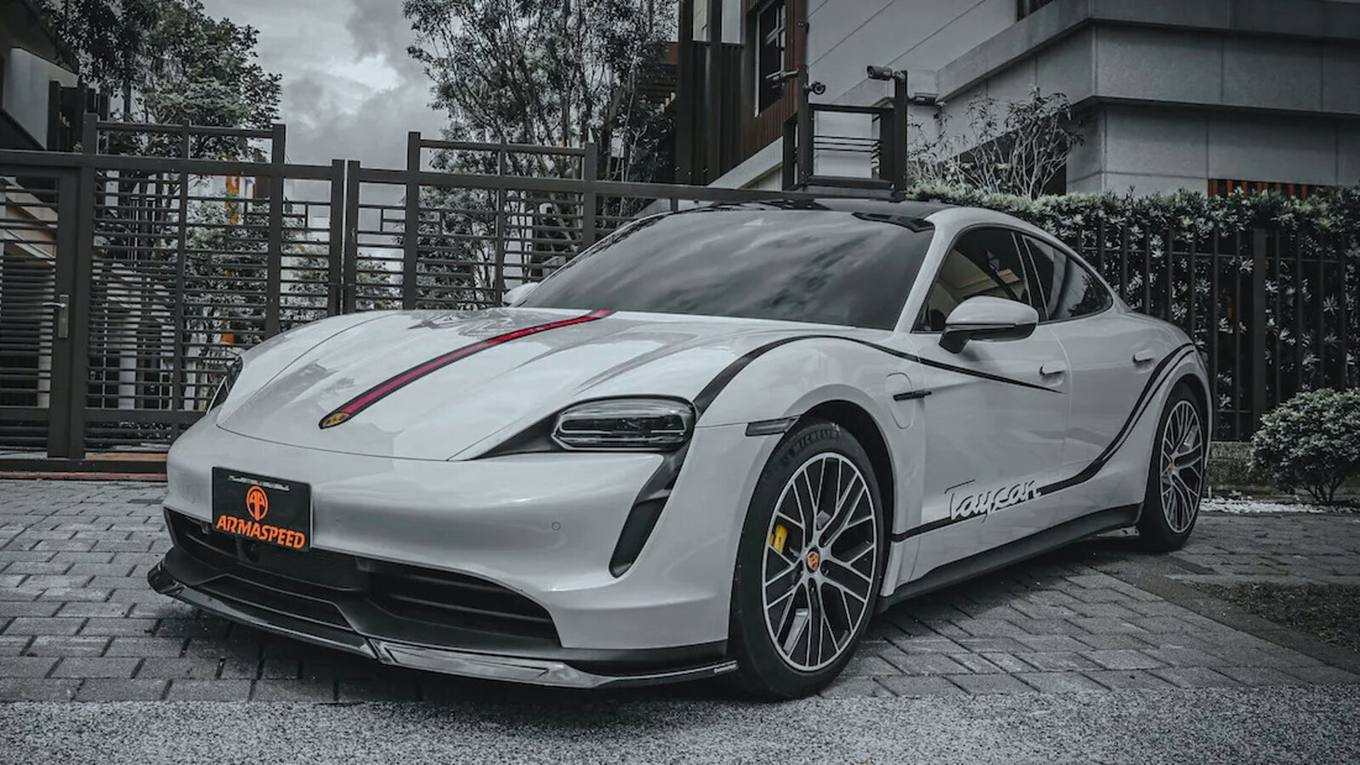

Porsche Taycan with the ARMASPEED carbon kit.

Porsche Taycan
Front lip, side skirts, rear diffuser, spoiler.
View live product →

04 · Reflection

What the production line sent back

I confirmed each production sample fitted the actual car, set the spec for the logo plate and the surface texture, validated the inspection jigs, and signed off on the hardware spec. Yield issues afterward came back into the next design. The feedback loop was part of the work too.

The three carbon fiber kits above are the highlighted selection. The pipeline shown earlier was first proved out on ARMASPEED’s ABS-material kits, including the Volkswagen Golf 8 GTI that I took from concept through release as the company’s first end-to-end design pilot. Those years later became the foundation for my project management certificates.
